Producs Description

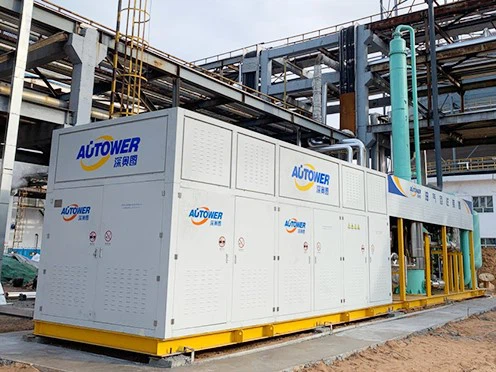

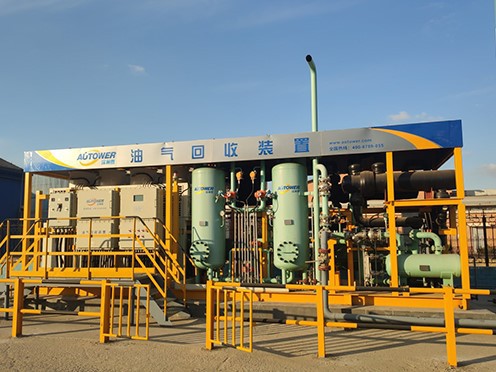

vapour recovery unit

Vapor recovery system for finished oil tankers in refineries and oil storage depots
Oil-field associated gas recovery system
Separation and recovery of chemical gases such as benzene and methanol
Mixed gas separation, concentration control and recovery in chemical production processes
Environmental protection standards require strict control of gas emission limits

Use activated carbon for selective adsorption to achieve separation of oil, gas and air. Activated carbon can be desorbed and regenerated, and the desorbed oil and gas are recovered through an absorption tower by using a dry vacuum pump vacuuming process. The absorbent used in the absorption tower is low-grade gasoline or light diesel in the storage tank area, and kerosene can also be used.

Producs Specification

ITEM		PARAMETER
Model		AWVR-X00
Rated processing capacity (Nm³/h)		100--30000
Operational flexibility (%)		30%～110%
Operating pressure		0.1 MPaG
Processing technology		Absorption+Adsorption/Desorption + Condensation (Free Combination)
Volatile gas medium		Hydrocarbon Vapor
Intake fuel gas concentration (%)		Maximum is the saturation concentration
Intake air-fuel temperature (°C)		40
Unit start-up and shutdown pressure (Pa)		+200/-200 (adjustable on-site)
power supply		380V, 50Hz, three-phase five-wire system
Unit operating ambient temperature (°C)		-20～60
Adsorbent type		Activated carbon
Oil and gas processing efficiency		≥97% (intake concentration is saturation concentration)
exhaust emission concentration		In accordance with the client's local regulatory requirements
Explosion-proof rating		Exd II BT4
Instrument protection level		IP65
Traffic monitoring function		Yes
System Control		Siemens PLC
Noise level (1m away from the oil and gas recovery equipment)		≤85dB
Installed power (kW)		110
Operating power (kW)		≤90kW
Piping	Vapor access pipeline boundary	DNXX 304 Stainless Steel
	oil pipeline boundary	DNXX 304 stainless steel
	Nitrogen pipe boundary	DNXX 304 stainless steel
	Boundary flange standard	HG/T20592-2009 PN16 RF
Preliminary equipment dimensions	Length (mm)	15,000 (Approximately)
	Width (mm)	3000 (Approximately)
	Height(mm)	4000 (Approximately)
	Exhaust pipe height	≥15m 《 GB 20950-2020 》
Skid weight (subject to detailed design)		30 tons (Approximately)
