Producs Description
Installing a Vapor Recovery Unit can be very profitable when the recovered vapors are sent to sale pipelines.
Recovered vapors can be used onsite as fuel yields a value equivalent to the purchased fuel that is displaced.
Vapor Recovery Units capture HAPs (hazardous air pollutants) and can reduce emissions below actionable levels. By capturing methane, H Vapor recovery Unit for oilfield also reduce the emissions of a greenhouse gas.
Producs Specification
|
ITEM |
PARAMETER |
|||
|
Model |
AWVR-X00 |
|||
|
Rated processing capacity (Nm³/h) |
100--30000 |
|||
|
Operational flexibility (%) |
30%～110% |
|||
|
Operating pressure |
0.1 MPaG |
|||
|
Processing technology |
Absorption+Adsorption/Desorption + Condensation (Free Combination) |
|||
|
Volatile gas medium |
Hydrocarbon Vapor |
|||
|
Intake fuel gas concentration (%) |
Maximum is the saturation concentration |
|||
|
Intake air-fuel temperature (°C) |
40 |
|||
|
Unit start-up and shutdown pressure (Pa) |
+200/-200 (adjustable on-site) |
|||
|
power supply |
380V, 50Hz, three-phase five-wire system |
|||
|
Unit operating ambient temperature (°C) |
-20～60 |
|||
|
Adsorbent type |
Activated carbon |
|||
|
Oil and gas processing efficiency |
≥97% (intake concentration is saturation concentration) |
|||
|
exhaust emission concentration |
In accordance with the client's local regulatory requirements |
|||
|
Explosion-proof rating |
Exd II BT4 |
|||
|
Instrument protection level |
IP65 |
|||
|
Traffic monitoring function |
Yes |
|||
|
System Control |
Siemens PLC |
|||
|
Noise level (1m away from the oil and gas recovery equipment) |
≤85dB |
|||
|
Installed power (kW) |
110 |
|||
|
Operating power (kW) |
≤90kW |
|||
|
Piping |
Vapor access pipeline boundary |
DNXX 304 Stainless Steel |
||
|
oil pipeline boundary |
DNXX 304 stainless steel |
|||
|
Nitrogen pipe boundary |
DNXX 304 stainless steel |
|||
|
Boundary flange standard |
HG/T20592-2009 PN16 RF |
|||
|
Preliminary equipment dimensions |
Length (mm) |
15,000 (Approximately) |
||
|
Width (mm) |
3000 (Approximately) |
|||
|
Height(mm) |
4000 (Approximately) |
|||
|
Exhaust pipe height |
≥15m 《 GB 20950-2020 》 |
|||
|
Skid weight (subject to detailed design) |
30 tons (Approximately) |
|||

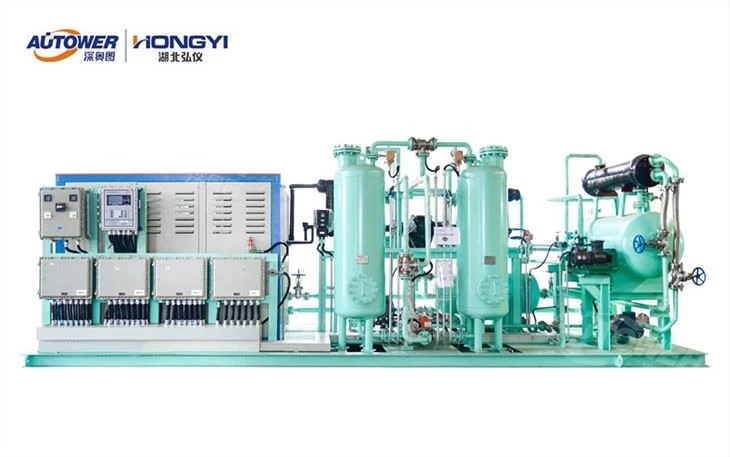

Products Details
Activated carbon selective adsorption, to achieve the separate oil and gas from air.
2 parallel adsorption tanks
Activated carbon can be desorption regeneration
The use of dry vacuum pump vacuum process,Descorption of oil and gas through the absorption tower for recycling.

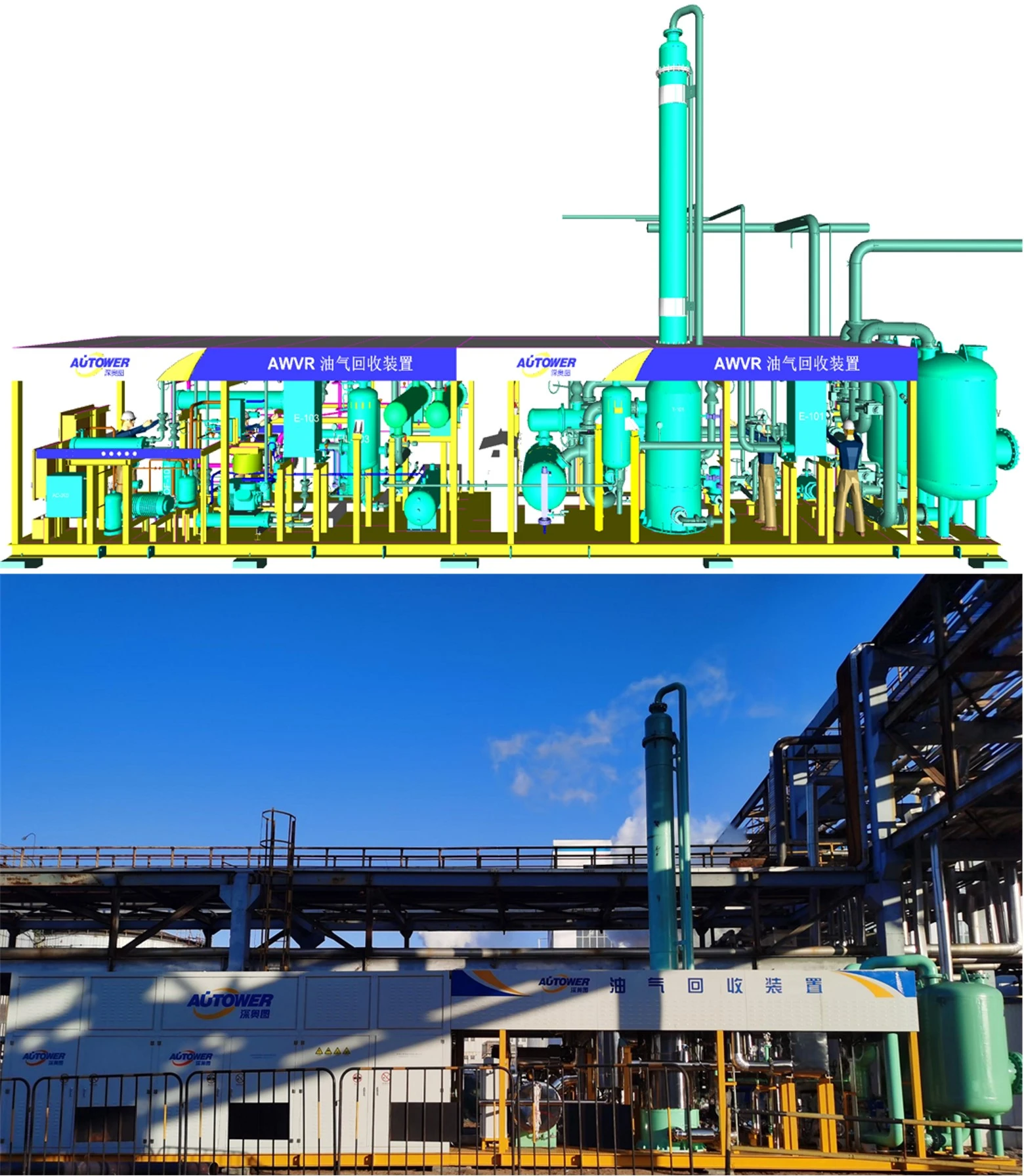

Products Drawing
Certificates
Production Application
Production Equipments
Partners
