Producs Description

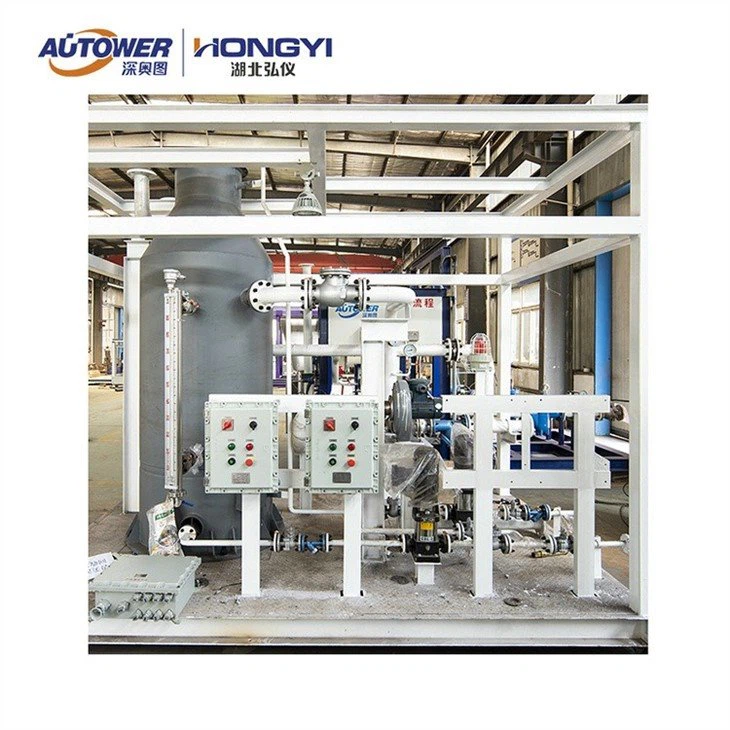

Vapor recovery Unit for crude oil refinery is used for the recovery of fuel and gasoline vapors from storage tanks, which restrict the escape of vapors into atmosphere. The unit is used to restrict, store, withdraw, and refine vapor from gas storage tanks. Vapors in storage tanks are harmful for the environment and economically beneficial. Use of Vapor Recovery Unit for Crude Oil Refinery would reduce harmful methane emissions coming out from the crude oil storage tanks.
Producs Specification
|
ITEM |
PARAMETER |
|||
|
Model |
AWVR-X00 |
|||
|
Rated processing capacity (Nm³/h) |
100--30000 |
|||
|
Operational flexibility (%) |
30%～110% |
|||
|
Operating pressure |
0.1 MPaG |
|||
|
Processing technology |
Absorption+Adsorption/Desorption + Condensation (Free Combination) |
|||
|
Volatile gas medium |
Hydrocarbon Vapor |
|||
|
Intake fuel gas concentration (%) |
Maximum is the saturation concentration |
|||
|
Intake air-fuel temperature (°C) |
40 |
|||
|
Unit start-up and shutdown pressure (Pa) |
+200/-200 (adjustable on-site) |
|||
|
power supply |
380V, 50Hz, three-phase five-wire system |
|||
|
Unit operating ambient temperature (°C) |
-20～60 |
|||
|
Adsorbent type |
Activated carbon |
|||
|
Oil and gas processing efficiency |
≥97% (intake concentration is saturation concentration) |
|||
|
exhaust emission concentration |
In accordance with the client's local regulatory requirements |
|||
|
Explosion-proof rating |
Exd II BT4 |
|||
|
Instrument protection level |
IP65 |
|||
|
Traffic monitoring function |
Yes |
|||
|
System Control |
Siemens PLC |
|||
|
Noise level (1m away from the oil and gas recovery equipment) |
≤85dB |
|||
|
Installed power (kW) |
110 |
|||
|
Operating power (kW) |
≤90kW |
|||
|
Piping |
Vapor access pipeline boundary |
DNXX 304 Stainless Steel |
||
|
oil pipeline boundary |
DNXX 304 stainless steel |
|||
|
Nitrogen pipe boundary |
DNXX 304 stainless steel |
|||
|
Boundary flange standard |
HG/T20592-2009 PN16 RF |
|||
|
Preliminary equipment dimensions |
Length (mm) |
15,000 (Approximately) |
||
|
Width (mm) |
3000 (Approximately) |
|||
|
Height(mm) |
4000 (Approximately) |
|||
|
Exhaust pipe height |
≥15m 《 GB 20950-2020 》 |
|||
|
Skid weight (subject to detailed design) |
30 tons (Approximately) |
|||

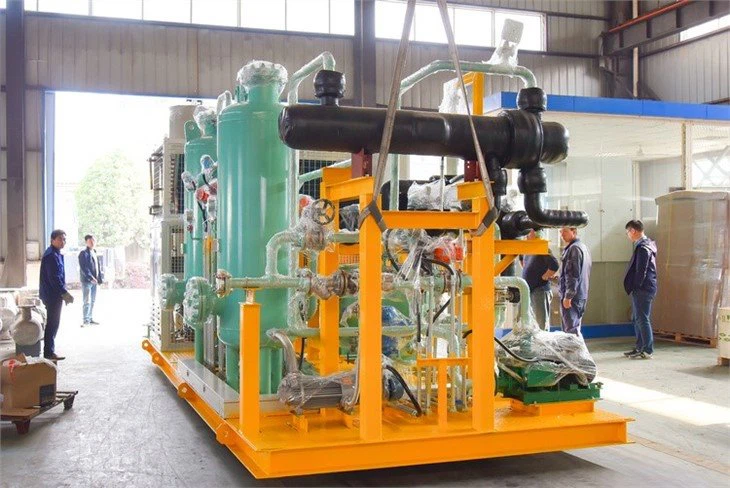

Products Details
Activated carbon selective adsorption, to achieve the separate oil and gas from air.
2 parallel adsorption tanks
Activated carbon can be desorption regeneration
The use of dry vacuum pump vacuum process,Descorption of oil and gas through the absorption tower for recycling.
