Solution of Vapor Recovery Unit system（VRU）

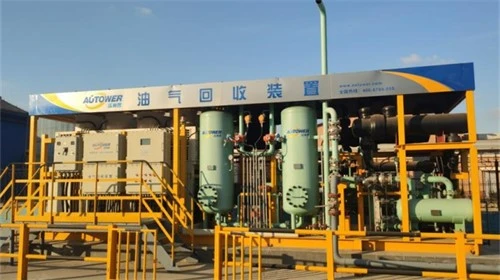

VRU OVERVIEW

Vapor Recovery Unit system (VRU), utilizing ADSORPTION, ABSORPTION, CONDENSATION, MEMBRANE SEPARATION and their combinations method, can significantly reduce the hydrocarbon content in VOCs, achieving 99% treatment efficiency.
VRU meets various stringent emission requirements, allowing for direct release into the atmosphere without further treatment. Furthermore, the liquid substances recovered through condensation can generate substantial economic benefits, covering investment costs in a short period.



Any parameters can be customized according to customer requirements, providing a one-stop solution for emission control and oil and gas recovery needs.

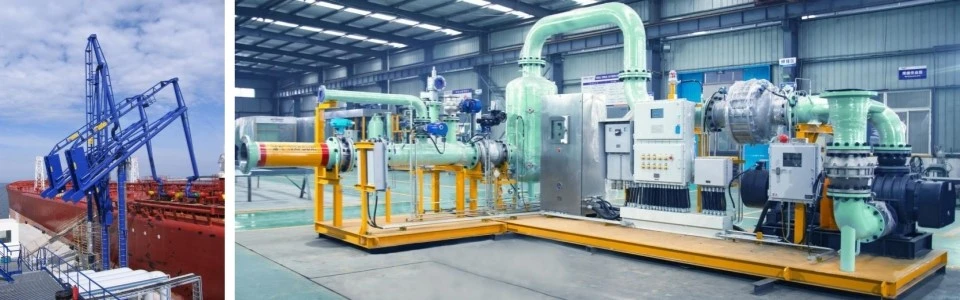

Vapor Recovery Ship-to-Dock Safety Unit of Marine loading VRU system

In order to protect the safety of ships, docks and oil and gas recovery equipment, a device is installed between the oil and gas collection device and the oil and gas transportation device.

The Vapour Recovery Ship-to-Dock Safety Unit (hereinafter referred to as the "Ship-to-Dock Safety Unit") is generally composed of pipelines, manual shut-off valves, check devices, inert gas control valves, pressure sensors, high-speed vent/vacuum valves or pressure/vacuum relief valves, electric unloading valves, electric shut-off valves, gas-liquid separators, oxygen content sensors, detonation-proof flame arresters, gas flow meters, explosion-proof control boxes, and control systems, as shown in Figure 1.

Working Principle of the Condensation System

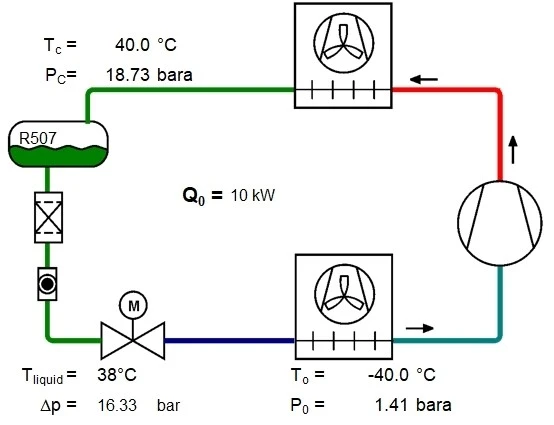

3-stage condensation system utilizing a refrigeration compressor and tubular heat exchangers

stage 1: drop to 5°C

stage 2:drop to -35°C

stage 3:drop to -75°C

Gradually remove moisture and non-methane hydrocarbons from the VOCs in these 3 stages.

Contcat us to learn more



Core Equipment of VRU

(condensation + adsorption process)

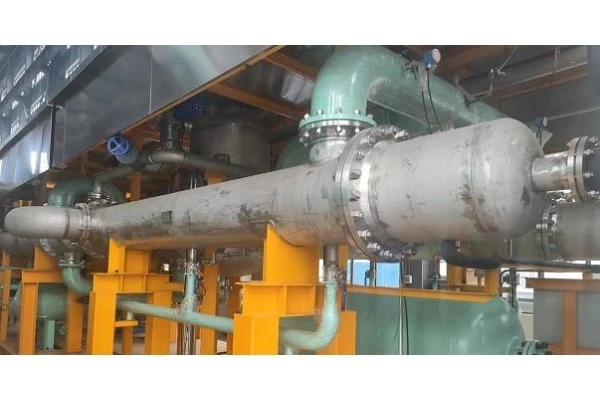

Tube heat exchanger

Solve the ice block problem of plate heat exchanger

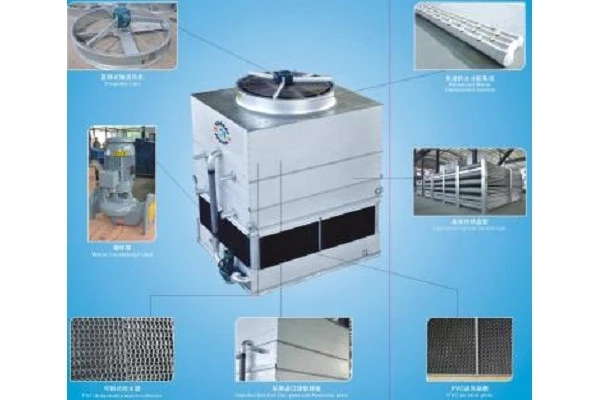

Evaporative cooler

To condense the refrigerant vapor into liquid

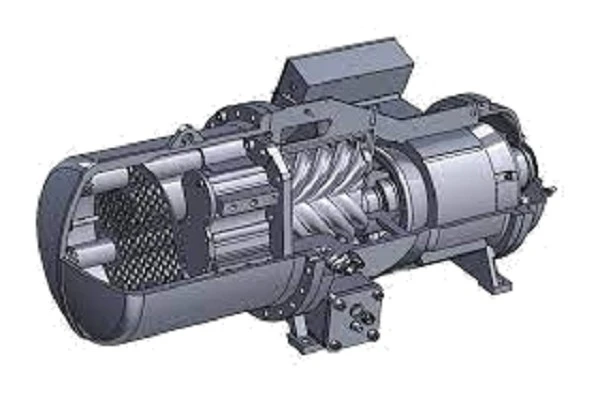

Screw compressor

The refrigerant vapor is compressed into high-temperature, high-pressure steam.

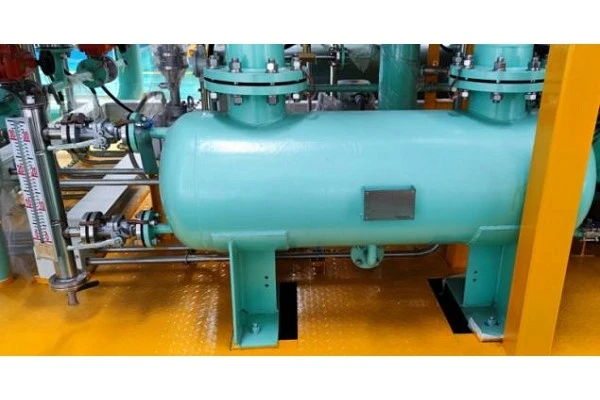

Gas-liquid separator

Collecting the condensate allows for recycling and generates economic benefits.

Refrigerant

Suitable for various temperatures

Such as R448A, R507, R23, R508B

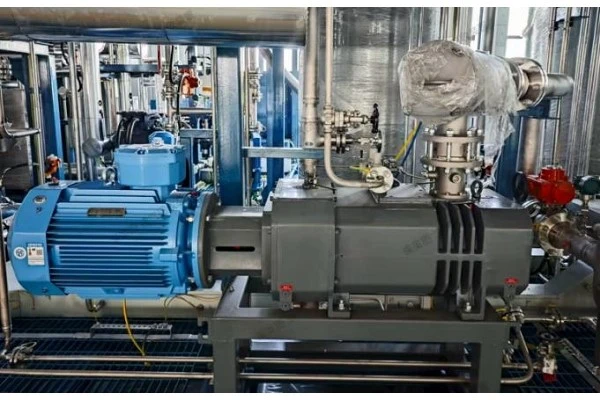

Dry Screw Vacuum Pump

Higher ultimate vacuum, lower power consumption, energy-efficient, and maintenance-free.

Design and Manufacturing Characteristics of Our VRU Products

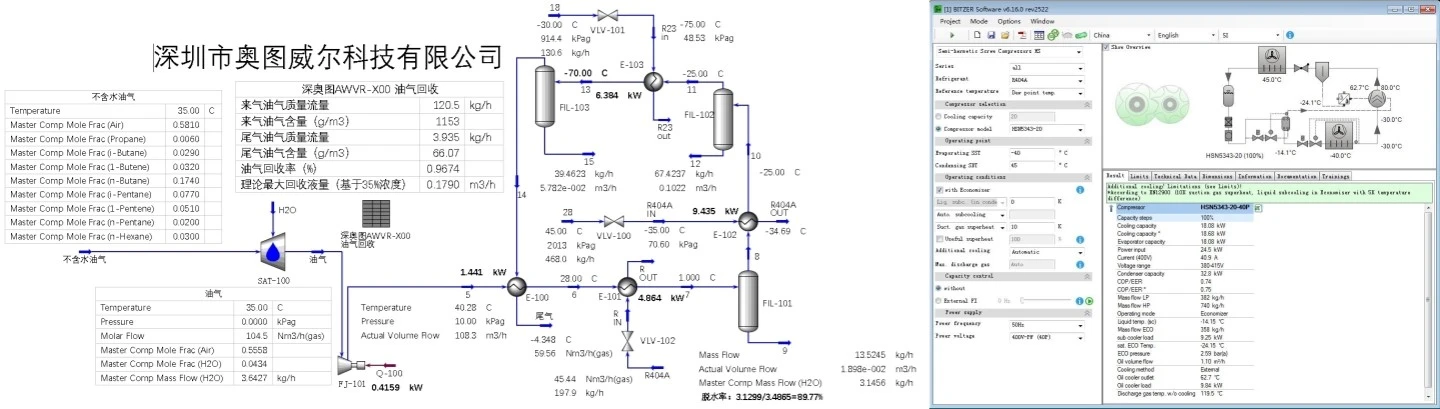

1.Professional parameter design

We utilize professional design software such as Aspen and Bitzer, performing targeted calculations at each step to precisely design the parameters of each component.

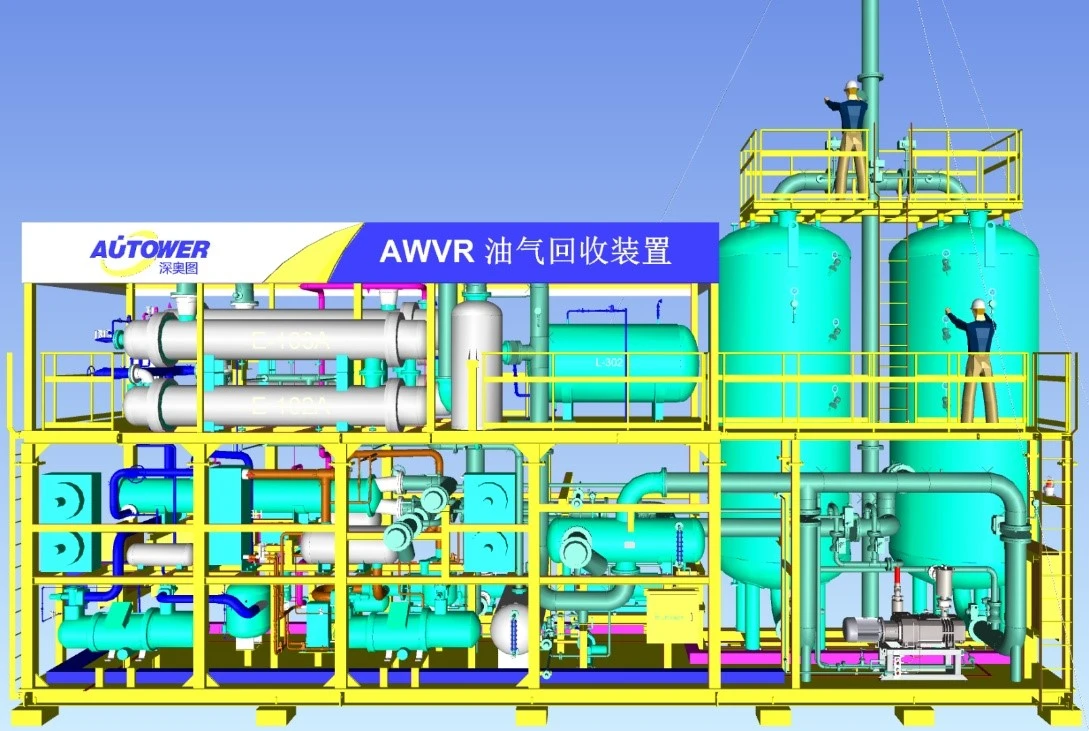

2. 3d modeling VRU design

The VRU product perfectly realize 3D model, 1:1 reproduction

Using advanced 3D simulation software, the material characteristics of the pipe & components are precisely defined, matching the real objects perfectly.

3. The user interface is clear and simple

VRU's Status, Temperature, Pressure, and various other parameters are all clearly displayed.

The entire process flow is clearly visible to the operators.

★Easy to operate ★quick to respond.

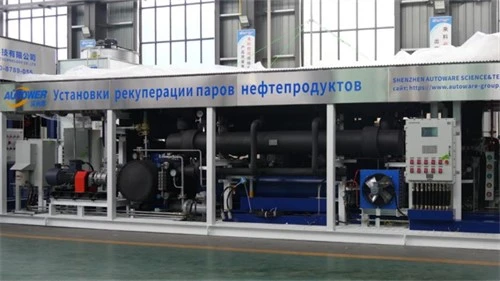

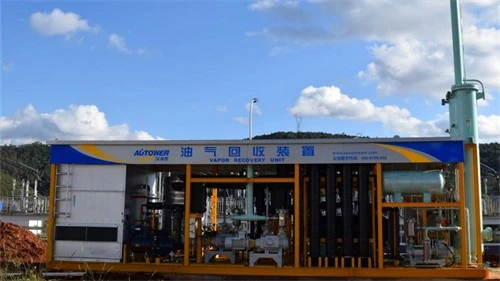

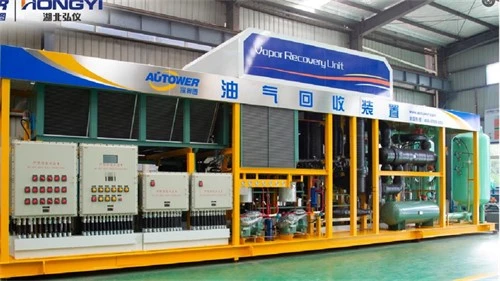

4. Characteristics of the Skid-Mounted Integrated Design

The screen faces the inside of the skid, making operation and observation easier

Explosion-proof cabinets are placed centrally to improve aesthetics.

Toolboxes are added to facilitate daily maintenance.

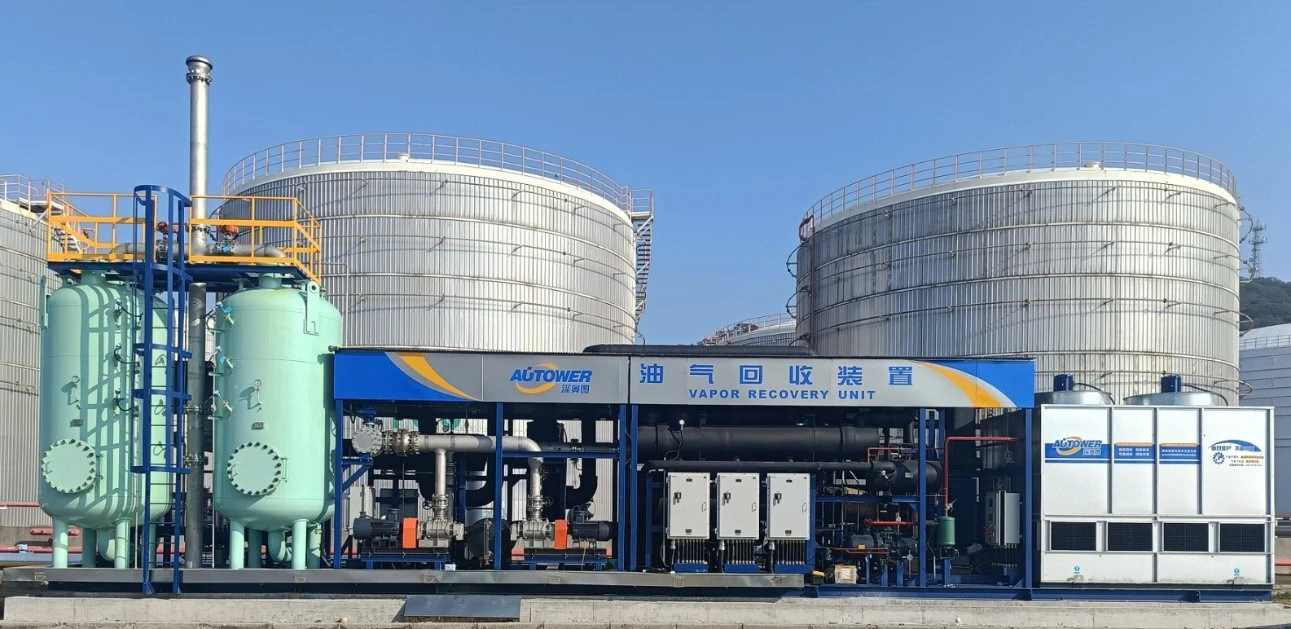

Global Performance

Standards & Compliance

The system is designed in accordance with:

ATEX Ex explosion-proof standards

ATEX Ex explosion-proof standards

CE certification

ASME certification

SIL certification

SIL certification



It supports communication with DCS and SCADA systems for centralized supervision.
