Products Description

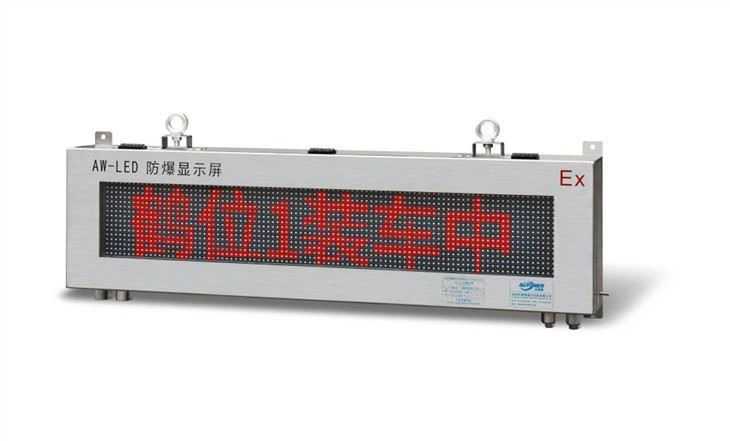

The LED explosion-proof electronic display is a field display device specially used for flammable and explosive dangerous places, which is specially matched with oil quantitative filling control system and electronic weighing system. Can be widely used in petroleum, chemical, pharmaceutical and other dangerous places with explosive gases.
Products Description
| Product name | LED explosion-proof electronic display | |||
| Product material | Stainless steel | |||
| Power supply | AC220V | |||
| Communication method | RS485 | |||
| Communication protocol | MODBUS RTU | |||
| Working temperature | -40℃-80℃ | |||
| Stored temperature | -40℃-80℃ | |||
| Relative humidity | 0~95% | |||
| Explosion-proof mark | Ex d ib II BT6 Gb | |||
| Size | 1120 mm×300 mm×140 mm (L×W×H) | |||
| Weight | 450kg | |||
Products Description
High-brightness STN LCD module, 24 buttons, Chinese, English and Russian menus operation,It can operate until 24 hours. It is easy to install, and the fault rate is low(Average failure time: MTBF> 100000 hours, 11 years).
IC card opera function, automatic detection device status,It can monitor in place or remote;Can control single loading position or multi-loading position,12 switch node valve position signals can be accessed;10 valves or pumps can be controlled (more scalable).
It can be used to display the license number guidance driver to the designated loader or display the weight during the parking position and the loading process.
