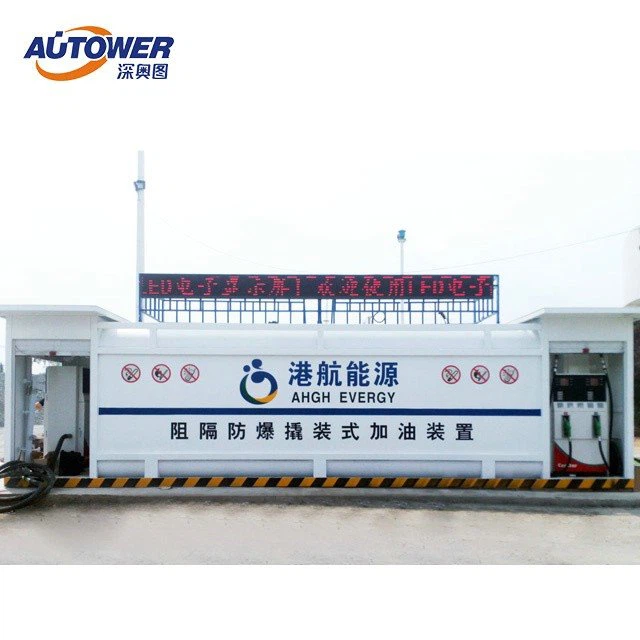

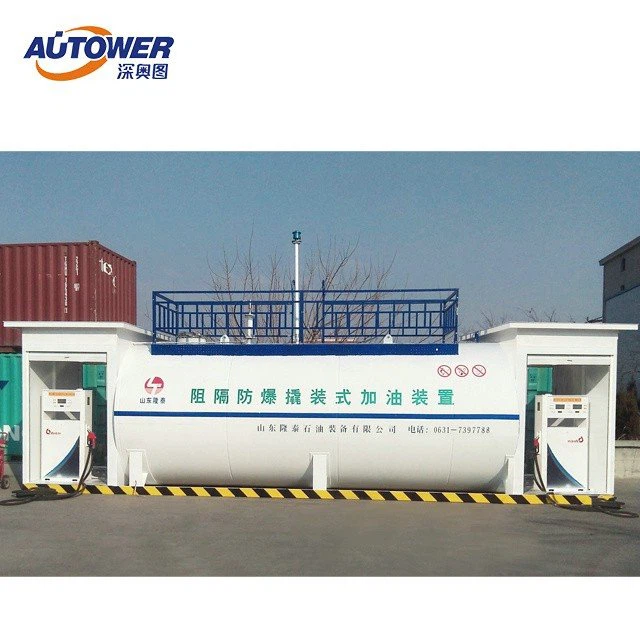

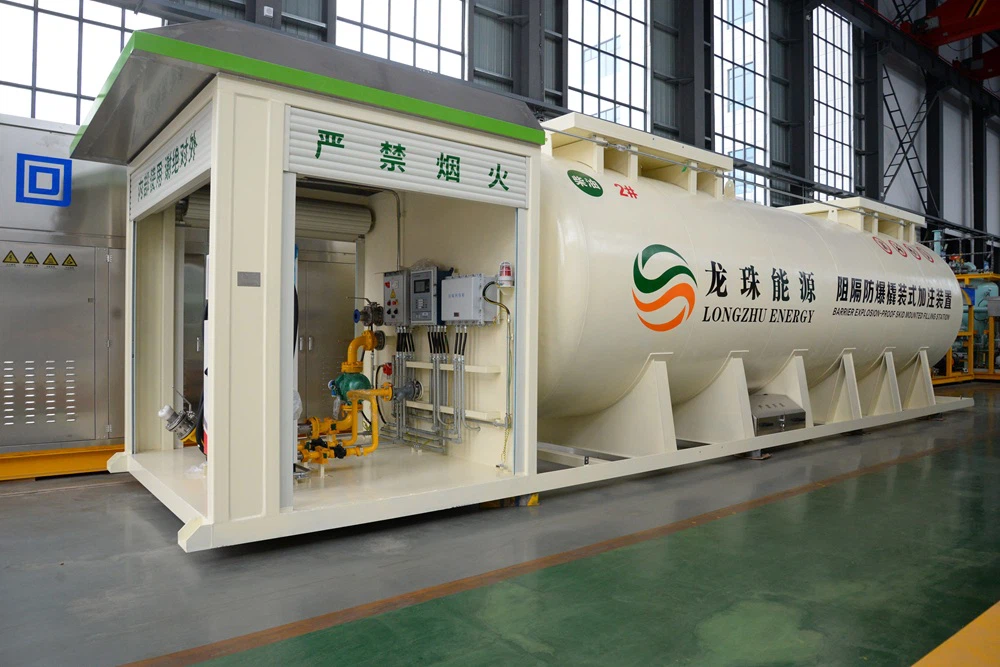

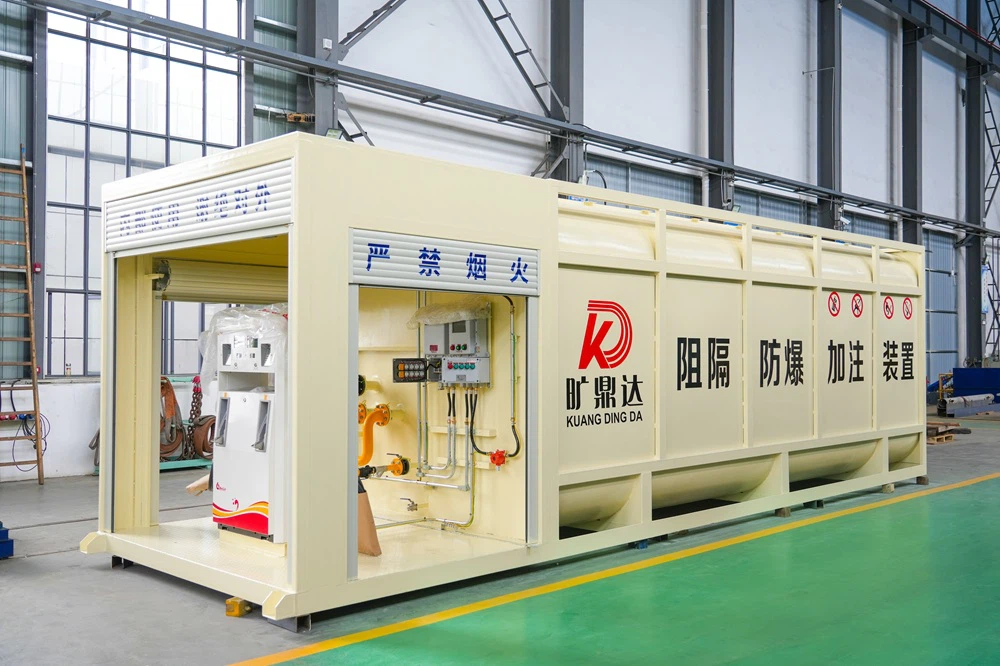

Double dispenser mobile filling station for Gasoline. The mobile gas filling station have double gun two dispensers. Function introduction: Safety explosion, Energy saving and emission reduction, Environmental protection, Elimination of static electricity, High cost efficiency, Convenient installation, Easy cleaning.
Advantages of The EX mobile filling station:
● Flexible shape and can be container shape or other design shape
● Small occupation of land and dismountable
●Environmental protection and energy saving
● Static connections can be made on site
● Maintenance is simple
Specification
|
Name |
Portable Skid-mounted fuel station |
|
Core Components |
Pressure vessel, Pump |
|
Size |
20/40 feet container |
|
Tanker Material |
Carbon steel |
|
Filling medium: |
Diesel, gasoline, or both |
|
Capacity |
15000L (20ft), 40000L(40ft) |
|
Working temperature |
-15~+50°C |
|
Dispenser |
Double nozzle or single nozzle |
|
Installation mode |
Outdoor, skid mounted fixation |
|
Oil pump maximum oil supply |
666L/min. |
|
Tank work pressure |
0.1MPa |
|
Working voltage |
380V |
|
Working power rate |
≤15KW |
|
Total weight/unit container |
≤25 Ton |
|
Overall sizes/unit container |
According to the container size |
|
Application standard |
UL-142 / NFPA 30A |
|
Others |
Customized |
Main Features
(1)Low investment costs
(2)Quick return of investment
(3)Flexible solution
(4)Various size of LPG storage tanks which installed on the skid with all accessories
(5)Simple layout and maximum safety
(6)Minimum civil works and engineering at site
(7)Low power consumption
(8)Easy and safe to operate
(9)Emergency stop systems
(10)Electronic level gauge
(11)Alarm system for Low & High level
