Producs Description

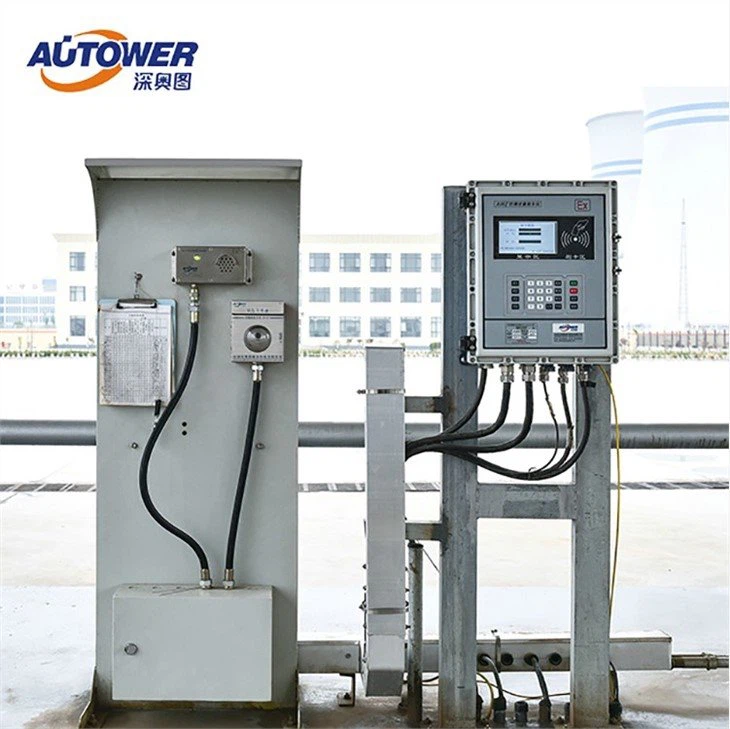

The batch controller is a wall-mounted or cabinet-type structure with an industrial-grade intelligent controller PLC.
Batch controller with SIEMENS PLC module function:
Set up the loading capacity, press the start button, automatically according to the set of the order to open the valve and pump, start loading. Achieve the set of advance, the automatic closing valves and pumps, complete quantitative loading operation.
Real time data acquisition, testing and display of the amount of the set, instantaneous flow, loading and accumulation, temperature, density, pressure and other data, real-time processing and storage of data.
Real-time interlocking static electricity, overflow alarm signal, detection alarm signal, the control device immediately stop the pump, off valve, and output alarm.
We have got the ATEX and CE certificate,and we have sold it to many countries ,such as Thailand ,Pakistan,Bangladesh,Mongolia,Gana etc..
Features:
1. One AWZ Loading Controller can control 1~4 loading position at same time.
2. AWZ Loading controller can control ratio of medium loading & offloading.
3. Adjust volume based on differences of density and volume which caused by temperature. There are hand-actuated and automatic ways.
4. Static grounding protection, AWZ Loading Controller can assure safety by stopping system operation once static wire don't grounded.
5. Oil Spilling protection, AWZ Loading Controller can automatically turn valve and pump off once spilled oil been detected.
Our batch controller have got the ATEX and CE certificate.
Producs Specification
|
Name |
Batch Controller |
|
Control the number of loading arm |
1-4 loading arm |
|
Power supply |
110-240VAC,2A,50Hz |
|
LCD |
High brightness STN liquid crystal display module |
|
Material |
Carbon steel,stainless steel |
|
IC card function |
With IC card operation or other language |
|
Keyboard input |
24keys,English menu operation or other language |
|
Equipment self-test |
Automatically detect device operating status and remotely monitor |
|
Flow signal |
Can be connected to 4 groups of 0-10KHz pulse input or two 4-20mA analog signal |
|
Valve position signal |
Up to 12 switch contact valve can be connected to his signal |
|
Relay output |
AC220V,SA,can control 10 valve or pumps(expandable more) |
|
PID adjustment output |
AO regulated output for adjustment of at least one PID loop |
|
Operation mode |
Continuous operation 24 hours a day, can be operated locally or remotely |
|
Working temperature |
-40℃～70℃ |
|
Storage temperature |
-30℃～80℃ |
|
Relative humidity |
0-90% |
|
Communication interface |
RS232,RS485 or RJ45 |
|
Communication protocol |
Modbus RTU(serial port),TCP/IP(Ethernet) |
|
Communication rate |
10Mbps(Ethernet),600-115200 bps(serial port) |
|
Mean time between failures |
MTBF>100000hours(11years) |
|
Explosion-proof sign |
ExdllBT6(IP65),ATEX Certificate |
|
Installation |
Wall-mounted/cabinet type |
|
Dimension |
300(length)×400(height)×150(deep) |
