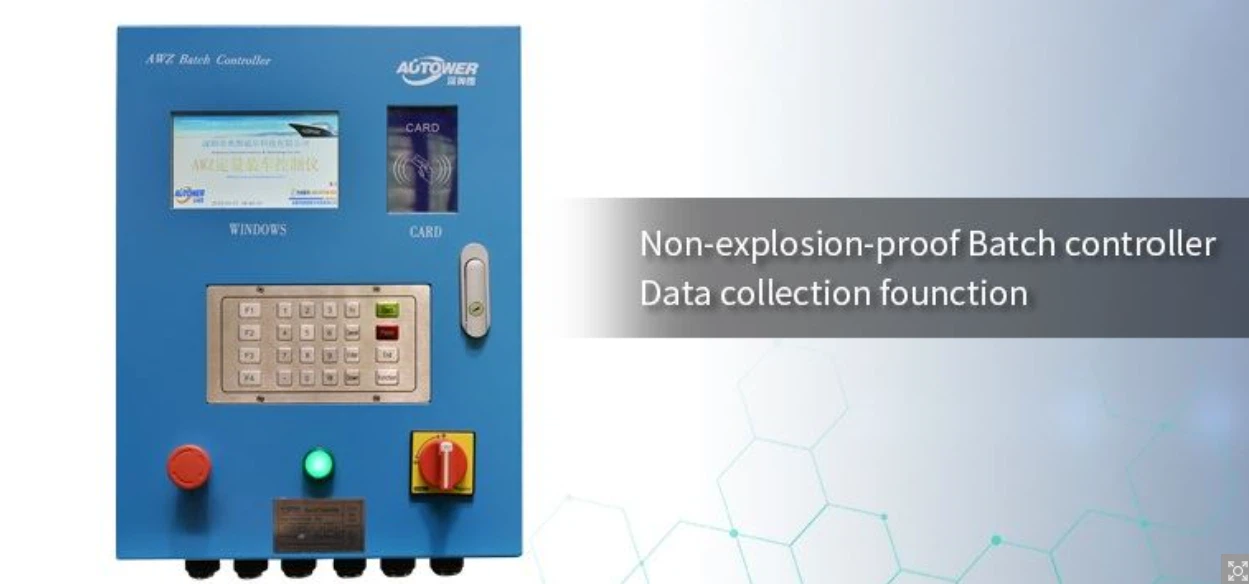

Producs Description
This Non-Ex Batch Controller for Metering System also can easily communicate with other management system because it is with serial interface or Ethernet interface suitable for MODBUS communication protocol. And we have got the ATEX,CE certificate.
The batch controller is a wall-mounted or cabinet-type structure with an industrial-grade intelligent controller PLC.
Producs Specification
|
Name |
Batch Controller |
|
Control the number of loading arm |
1-4 loading arm |
|
Power supply |
110-240VAC,2A,50Hz |
|
LCD |
High brightness STN liquid crystal display module |
|
Material |
Carbon steel,stainless steel |
|
IC card function |
With IC card operation or other language |
|
Keyboard input |
24keys,English menu operation or other language |
|
Equipment self-test |
Automatically detect device operating status and remotely monitor |
|
Flow signal |
Can be connected to 4 groups of 0-10KHz pulse input or two 4-20mA analog signal |
|
Valve position signal |
Up to 12 switch contact valve can be connected to his signal |
|
Relay output |
AC220V,SA,can control 10 valve or pumps(expandable more) |
|
PID adjustment output |
AO regulated output for adjustment of at least one PID loop |
|
Operation mode |
Continuous operation 24 hours a day, can be operated locally or remotely |
|
Working temperature |
-40℃～70℃ |
|
Storage temperature |
-30℃～80℃ |
|
Relative humidity |
0-90% |
|
Communication interface |
RS232,RS485 or RJ45 |
|
Communication protocol |
Modbus RTU(serial port),TCP/IP(Ethernet) |
|
Communication rate |
10Mbps(Ethernet),600-115200 bps(serial port) |
|
Mean time between failures |
MTBF>100000hours(11years) |
|
Explosion-proof sign |
ExdllBT6(IP65),ATEX Certificate |
|
Installation |
Wall-mounted/cabinet type |
|
Dimension |
300(length)×400(height)×150(deep) |
Products Details
|
|
Product Application
Certificates
Production Equippments
