Products Description

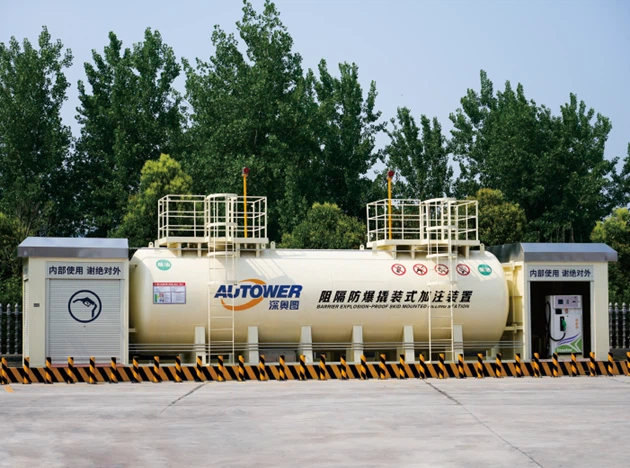

Movable filling Station for Diesel is a combination of fuel dispenser, explosion-proof storage tank automatic fire extinguisher, explosion-proof electrical units ,unloading system and other components in one refueling equipment. The diesel fuel petrol mobile fuel pump station is a safe,reliable , eco-friendly ,energy conservation and easy to maintenance high-tech product which can be functioned as a traditional small and medium-sized gas station .
Features of EX movable filling station device:
● Movable skid, flexible and easy to install and place.
● Safety explosion-proof, good fireproof and explosion-proof effect, and good heat dissipation
● High safety and reliability: Isolation and Ex Device are used
● Easy to install, set up takes only 1-3days.
For more information, please contact our sales manager.
Products Specifications
|
Name |
Movable Filling Station for Diesel |
|
Explosion-proof technology |
Internal ignition suppression system |
|
Size |
20/40 feet container |
|
Tanker Material |
Carbon steel |
|
Oil product |
Diesel, gasoline, or both |
|
Capacity |
15000L (20ft), 40000L(40ft) |
|
Working temperature |
-15~+50°C |
|
Dispenser |
Double nozzle or single nozzle |
|
Installation mode |
Outdoor, skid mounted fixation |
|
Oil pump maximum oil supply |
666L/min. |
|
Tank work pressure |
0.1MPa |
|
Working voltage |
380V |
|
Working power rate |
≤15KW |
|
Total weight/unit container |
≤25 Ton |
|
Overall sizes/unit container |
According to the container size |
|
Application standard |
UL-142 / NFPA 30A |
|
Others |
Customized |

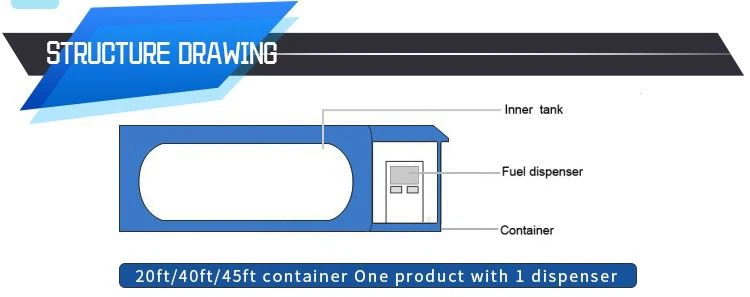

Structure Drawing
FAQ
Q: Are you the factory to provide OEM products?
A: Yes, we are factory focused on Movable Filling station for more than 5 years in China,
OEM service is available
Q: How about your product quality?
A: Our factory passed ISO 9000. To make sure the quality, all products will be 100% checked on production line, and we also will check the product before shipping.
Q: How long is your warranty?
A: Movable Filling station have 12 months warranty. During this period, customers can repair Movable Filling station for free.
