Producs Description

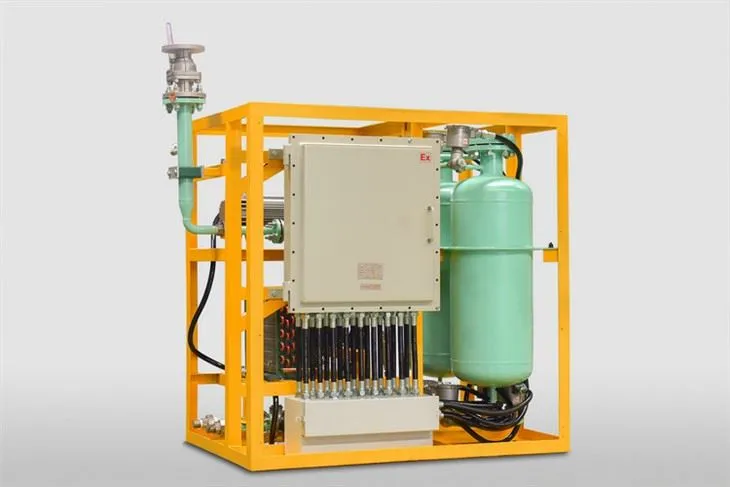

Vapor recovery Unit for petroleum refinery. The processing tower is connected to the storage tank vent system. The unit is mounted on a skid, completely factory assembled, tested prior to shipment, and comes with all required equipment, including instrumentation, piping, and electrical components. Operation is simple – a single switch activates the automatic startup, operation, and shutdown of the unit.
Producs Specification
|
ITEM |
PARAMETER |
|||
|
Model |
AWVR-X00 |
|||
|
Rated processing capacity (Nm³/h) |
100--30000 |
|||
|
Operational flexibility (%) |
30%～110% |
|||
|
Operating pressure |
0.1 MPaG |
|||
|
Processing technology |
Absorption+Adsorption/Desorption + Condensation (Free Combination) |
|||
|
Volatile gas medium |
Hydrocarbon Vapor |
|||
|
Intake fuel gas concentration (%) |
Maximum is the saturation concentration |
|||
|
Intake air-fuel temperature (°C) |
40 |
|||
|
Unit start-up and shutdown pressure (Pa) |
+200/-200 (adjustable on-site) |
|||
|
power supply |
380V, 50Hz, three-phase five-wire system |
|||
|
Unit operating ambient temperature (°C) |
-20～60 |
|||
|
Adsorbent type |
Activated carbon |
|||
|
Oil and gas processing efficiency |
≥97% (intake concentration is saturation concentration) |
|||
|
exhaust emission concentration |
In accordance with the client's local regulatory requirements |
|||
|
Explosion-proof rating |
Exd II BT4 |
|||
|
Instrument protection level |
IP65 |
|||
|
Traffic monitoring function |
Yes |
|||
|
System Control |
Siemens PLC |
|||
|
Noise level (1m away from the oil and gas recovery equipment) |
≤85dB |
|||
|
Installed power (kW) |
110 |
|||
|
Operating power (kW) |
≤90kW |
|||
|
Piping |
Vapor access pipeline boundary |
DNXX 304 Stainless Steel |
||
|
oil pipeline boundary |
DNXX 304 stainless steel |
|||
|
Nitrogen pipe boundary |
DNXX 304 stainless steel |
|||
|
Boundary flange standard |
HG/T20592-2009 PN16 RF |
|||
|
Preliminary equipment dimensions |
Length (mm) |
15,000 (Approximately) |
||
|
Width (mm) |
3000 (Approximately) |
|||
|
Height(mm) |
4000 (Approximately) |
|||
|
Exhaust pipe height |
≥15m 《 GB 20950-2020 》 |
|||
|
Skid weight (subject to detailed design) |
30 tons (Approximately) |
|||
Products Details
Activated carbon selective adsorption, to achieve the separate oil and gas from air.
2 parallel adsorption tanks
Activated carbon can be desorption regeneration
The use of dry vacuum pump vacuum process,Descorption of oil and gas through the absorption tower for recycling.
