Product Description

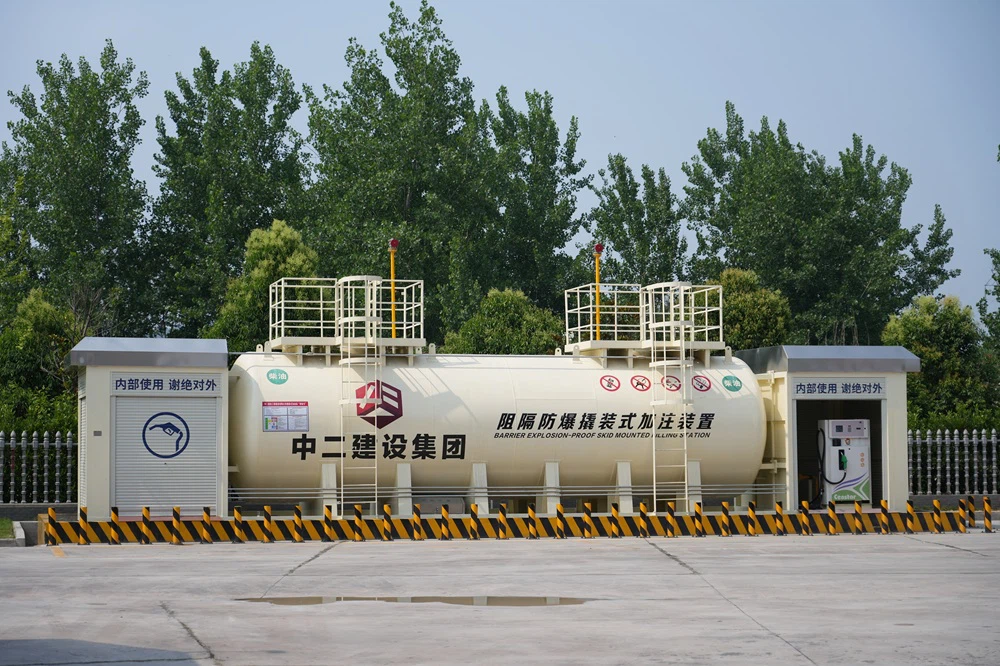

Standard movable filling Station for Gasoline is a mobile refueling control device. The movable refueling skid is a mobile refueling control device. It's mainly has explosion-proof tanks, tankers, distributors and automatic fire extinguishing equipment, Etc., the integrated device is small in size but fully equipped.
Main Type:
● Single-layer tank with standard container, with second-hand internal ignition suppression system mobile fuel skid.
● Double-layer tank with mobile skid with double EX suppression system.
For more information, please contact our sales manager.
Specification
|
Name |
Portable Skid-mounted fuel station |
|
Core Components: |
Pressure vessel, Pump |
|
Size |
20/40 feet container |
|
Material |
Carbon steel |
|
Filling medium: |
Diesel, gasoline, or both |
|
Capacity |
15000L (20ft), 40000L(40ft) |
|
Working temperature |
-15~+50°C |
|
Dispenser |
Double nozzle or single nozzle |
|
Installation mode |
Outdoor, skid mounted fixation |
|
Oil pump maximum oil supply |
666L/min. |
|
Tank work pressure |
0.1MPa |
|
Working voltage |
380V |
|
Working power rate |
≤15KW |
|
Total weight/unit container |
≤25 Ton |
|
Overall sizes/unit container |
According to the container size |
|
Certification: |
ISO9001 |
|
Others |
Customized |

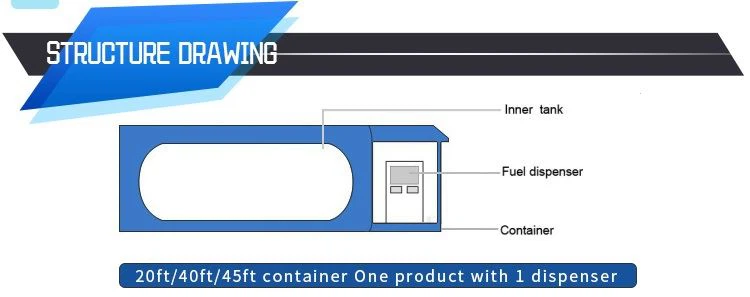

1.This is a kind of innovative fuel system combined with above-ground fire and explosion resistant tank, dispenser and fire prevention system.
2.Safety and high reliability: the use of barrier explosion-proof device.
3.Without additional auxiliary equipment, low operating costs.
4.Fully functional: can be one, two or three different kinds of oil, and can be configured to meet the different oil filling methods.
Packing information
1 boxes/carton; 1 carton/ container
Shipping information
Delivery time:
As usual, our delivery time is 30 working days for Movable Filling station. Our sales team will arrange the goods as soon as possible.
Warranty
Warranty :12 months
